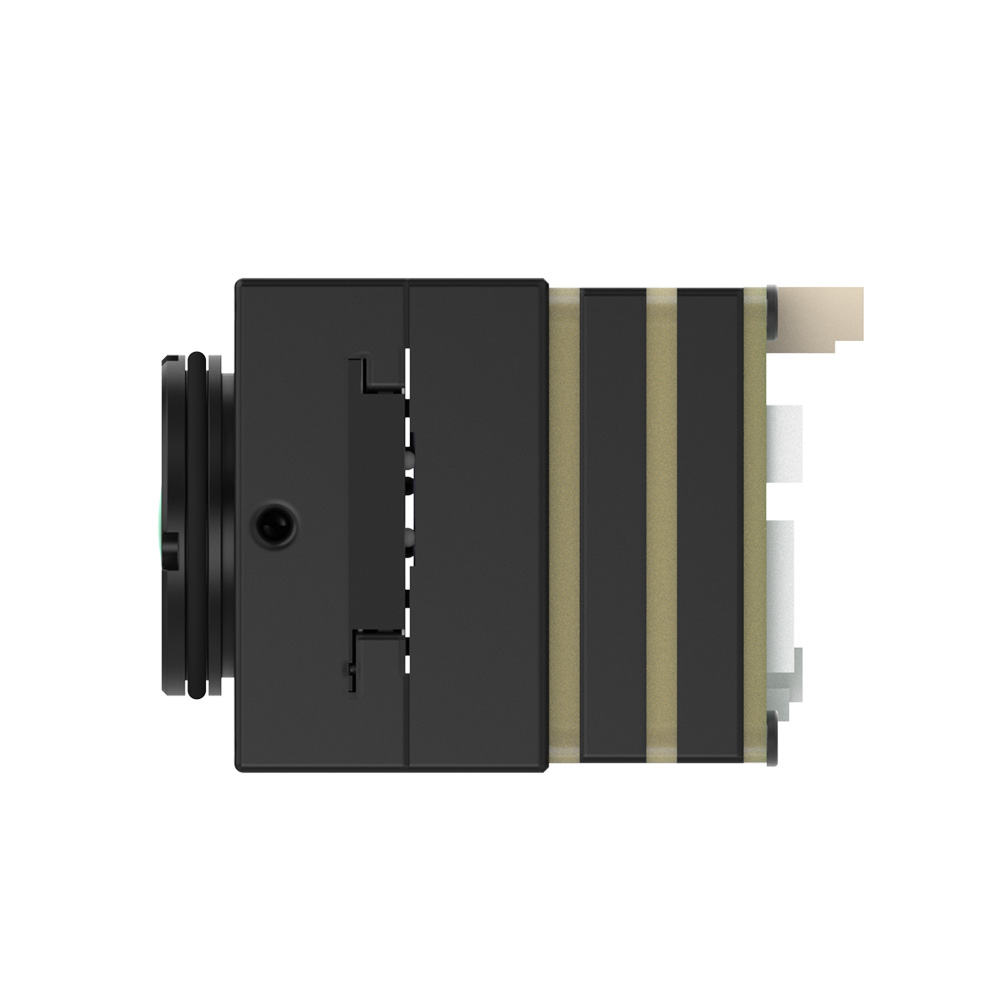

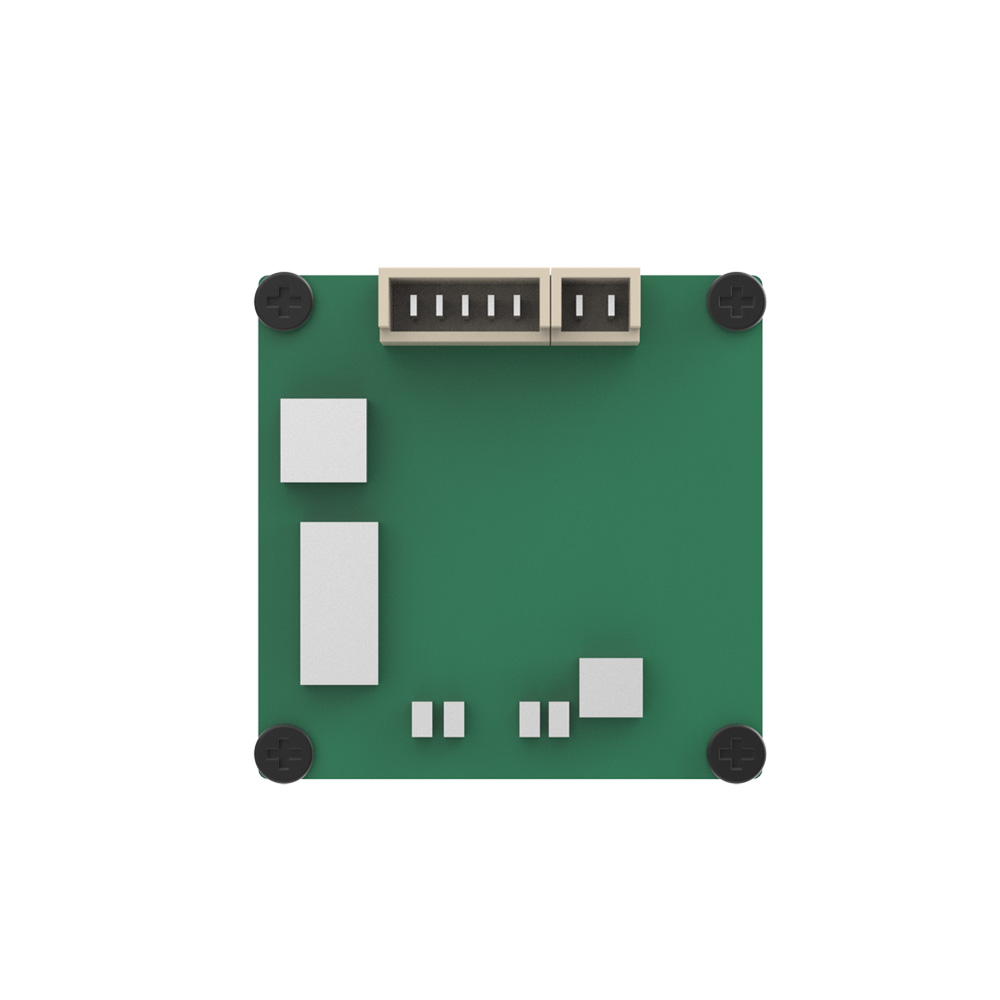

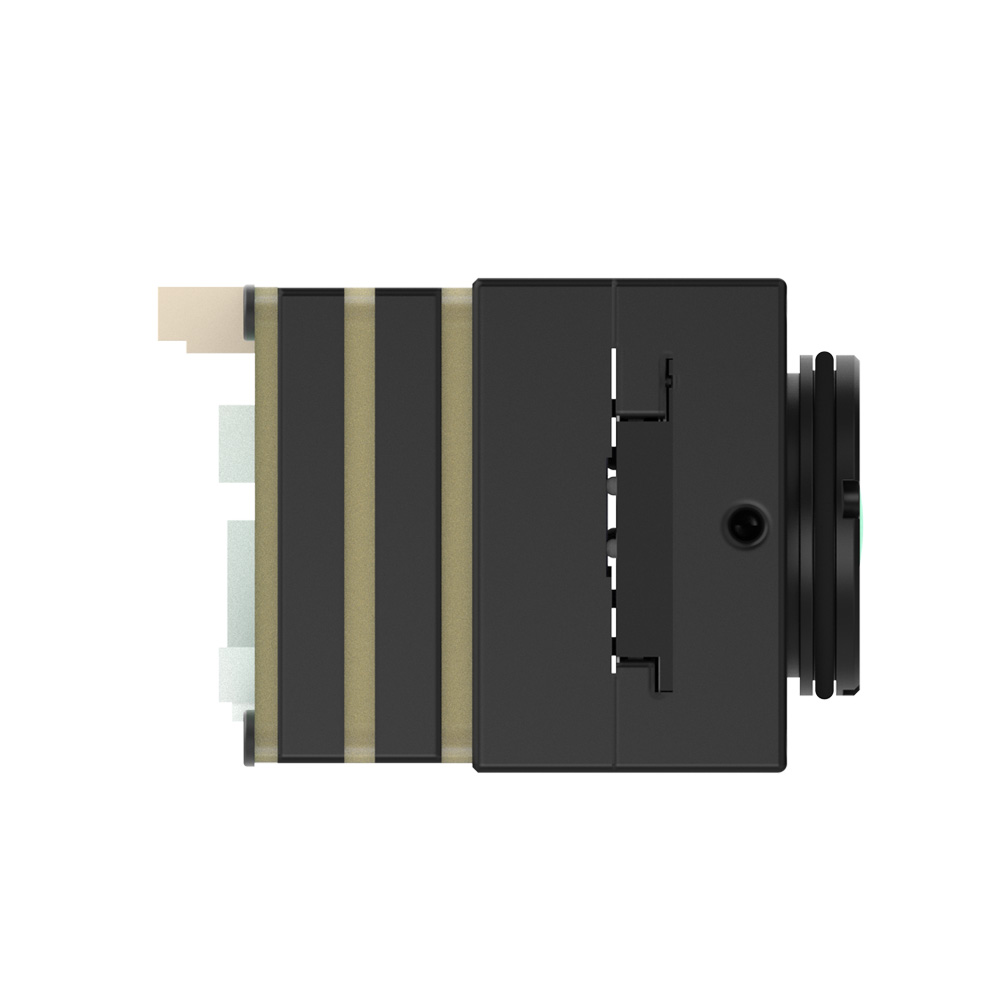

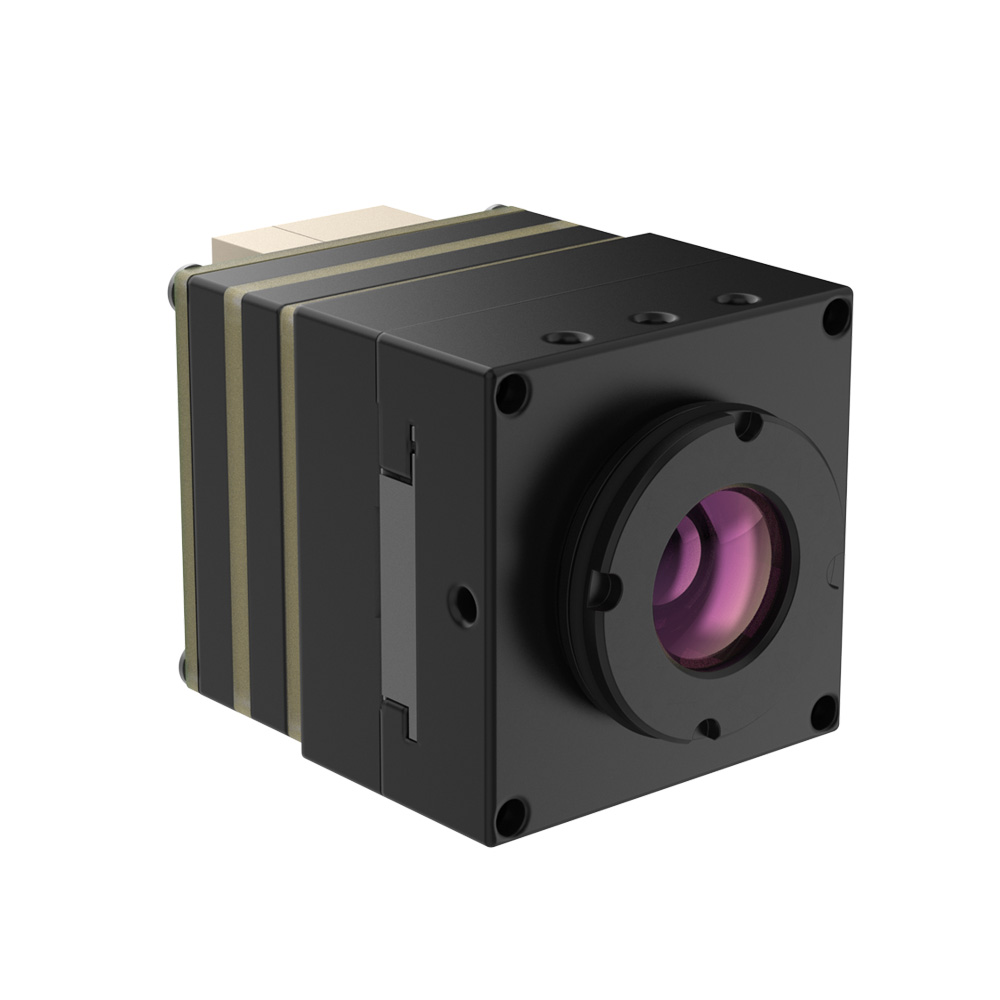

Product Introduction: M02 Uncooled Infrared Thermal Imaging Core
The M02 is a high-performance uncooled infrared thermal imaging core designed for a wide range of professional and industrial applications. It features a 384×288 resolution with a 12μm pixel size, providing clear and detailed thermal imagery across its 8-14μm working band.
Key features include an impressive NETD of ≤40mK@25°C, F/1.0, ensuring excellent sensitivity to temperature differences even in challenging conditions. With a 50Hz frame rate and a 28.4°×21.5° field of view, it delivers smooth, real-time thermal video. The core supports manual focusing and offers six different false color palettes, including white heat, black heat, and rainbow, to enhance image interpretation.
For integration, the M02 provides a standard CVBS analog video output (PAL 720×576) and is compatible with a 5V to 24V power supply, consuming only 1.3W. Its compact dimensions (28.4×28.4×41mm) and lightweight design (53g) make it an ideal solution for integration into various systems, including handheld devices, drones, and security equipment. The operating temperature range of -20°C to +50°C and storage temperature range of -30°C to +70°C ensure reliable performance in diverse environments.
| Parameter | Value |
|---|---|
| Model | M02 |
| Resolution | 384×288 |
| Pixel size | 12μm |
| Working band | 8 ~ 14μm |
| NETD | ≤40mK@25°C,F/1.0 |
| Frame rate | 50Hz |
| Focus mode | Manual focusing |
| Focal length | 91mm |
| Field of view | 28.4°×21.5° |
| False color | White heat, black heat, rainbow, hot metal, etc. - 6 kinds of false colors |
| F coefficient | 1.0 |
| Digital video output | / |
| Analog video output | CVBS |
| Analog Output Resolution | PAL 720×576 |
| Shutter response time | 30 seconds - 300 seconds (default: 30 seconds) |
| Hotspot tracking | On or off (default: off) |
| Grid lines | 7 kinds of differentiation lines (default: off) |
| Language | English |
| Brightness/Contrast | / |
| Electronic Zoom | / |
| Image mirroring | / |
| Operating voltage | 5V (5V~24V) |
| Power consumption | 1.3W(5V/260mA) |
| Operating temperature | -20°C~+50°C |
| Storage temperature | -30°C~+70°C |
| Size | 28.4×28.4×41mm |
| Weight | 53g |
