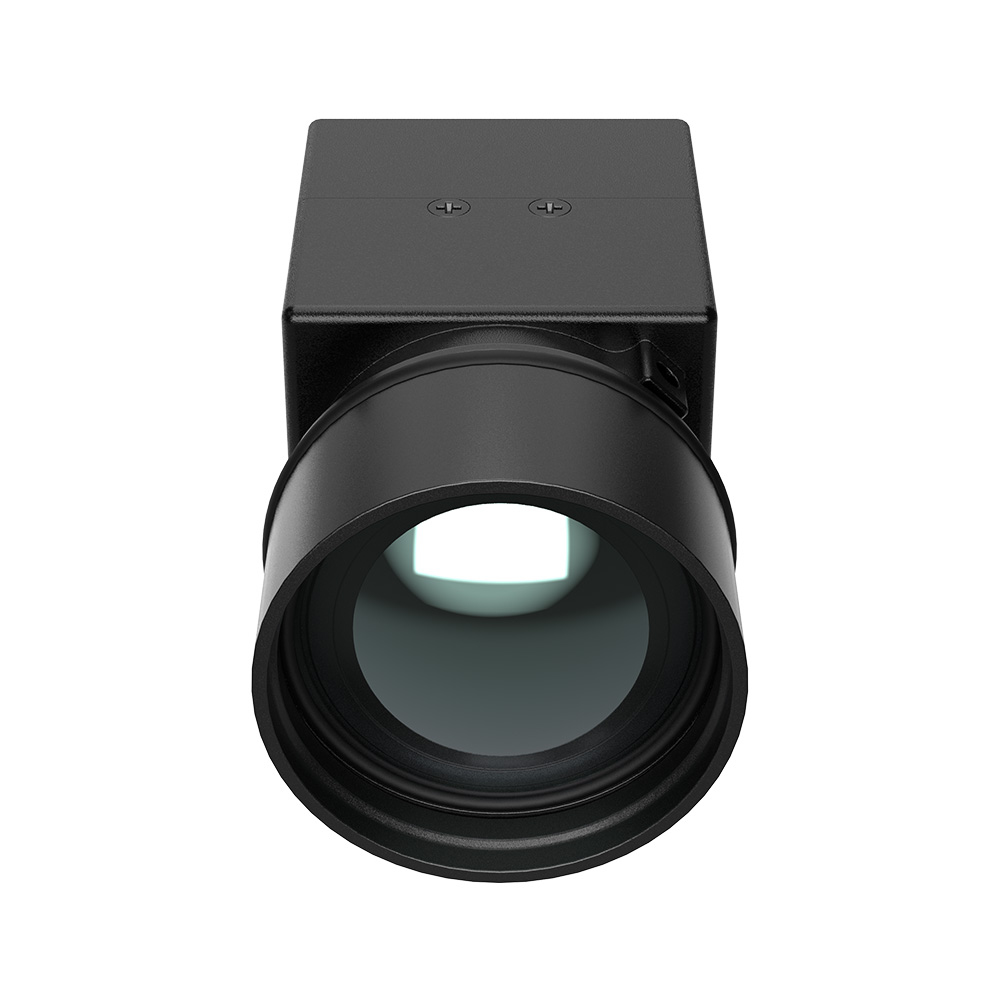

Product Introduction: M07-25 Uncooled Infrared Thermal Imaging Core
The M07-25 is a high-performance uncooled infrared thermal imaging core designed for a wide range of professional and industrial applications. It features a 640×512 resolution with a 12μm pixel size, providing clear and detailed thermal imagery across its 8-14μm working band.
Key features include an impressive NETD of <25mK@F10,300K, ensuring excellent sensitivity to temperature differences even in challenging conditions. With a 50fps frame rate and a 17.5°×14.0° field of view, it delivers smooth, real-time thermal video. The core utilizes a fixed focal length of 25mm and offers six different false color palettes, including white heat, black heat, and rainbow, to enhance image interpretation.
For integration, the M07-25 provides a USB digital video output and is compatible with a DC5V±10% power supply, consuming less than 2W. Its compact dimensions (56.1×30×30mm) and lightweight design (75g) make it an ideal solution for integration into various systems, including handheld devices, drones, and security equipment. The operating temperature range of -20°C to +60°C ensures reliable performance in diverse environments.
| Parameter | Value |
|---|---|
| Model | M07-25 |
| Resolution | 640×512 |
| Pixel size | 12μm |
| Working band | 8 ~ 14μm |
| NETD | <25mK@F10,300K |
| Frame rate | 50fps |
| Focus mode | Fixed focal length |
| Focal length | 25mm |
| Field of view | 17.5°×14.0° |
| False color | White heat, black heat, hot fire, rainbow, etc. - 6 kinds of false colors |
| F coefficient | 1.0 |
| Digital video output | USB |
| Analog video output | / |
| Analog Output Resolution | 640×480 |
| Shutter response time | / |
| Hotspot tracking | / |
| Grid lines | / |
| Language | / |
| Brightness/Contrast | / |
| Electronic Zoom | / |
| Image mirroring | Support |
| Operating voltage | DC5V±10%0.4A |
| Power consumption | <2W |
| Operating temperature | -20°C~+60°C |
| Storage temperature | / |
| Size | 56.1×30×30mm |
| Weight | 75g |
