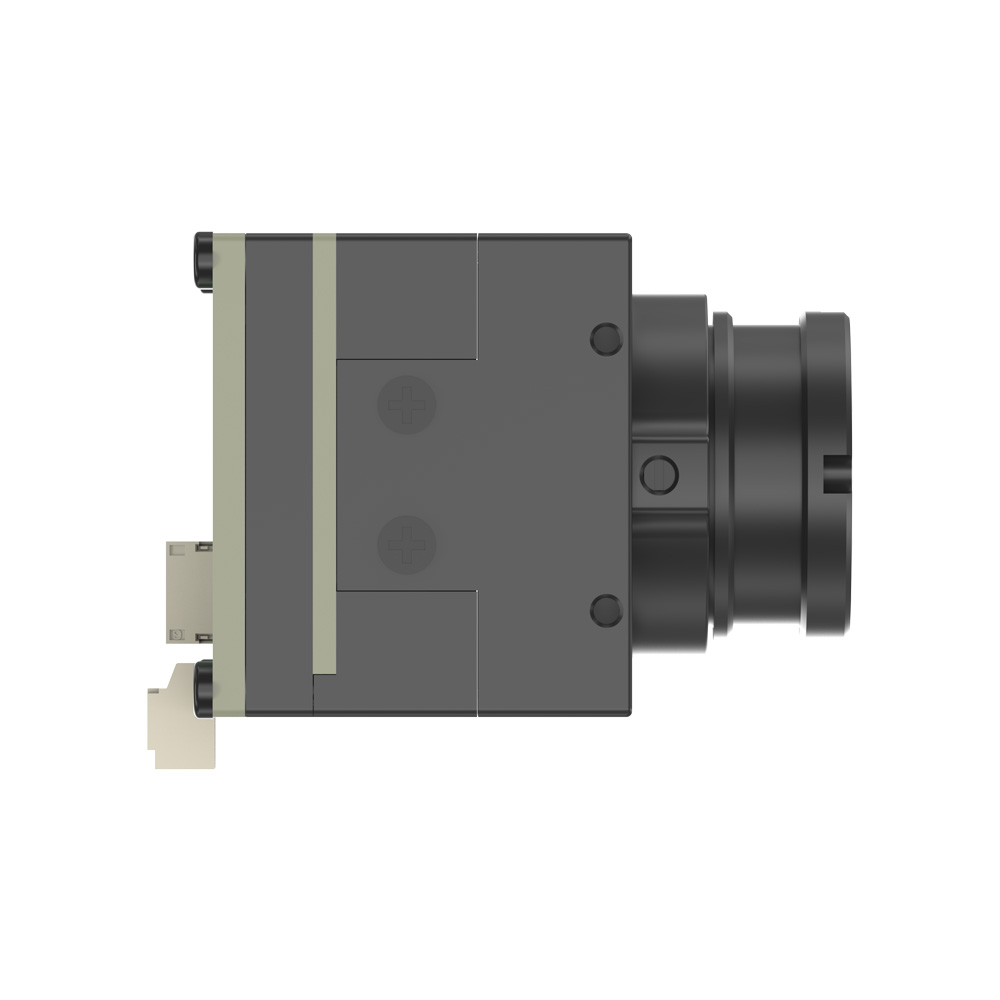

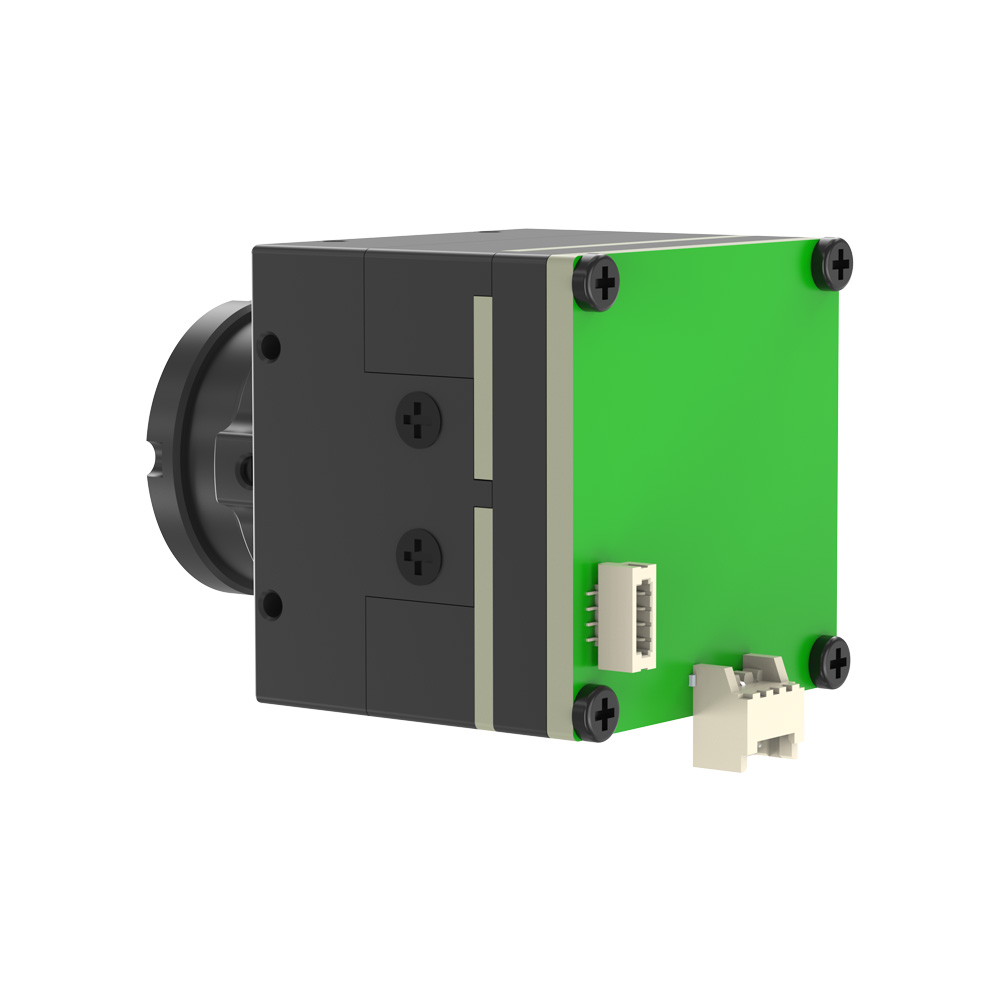

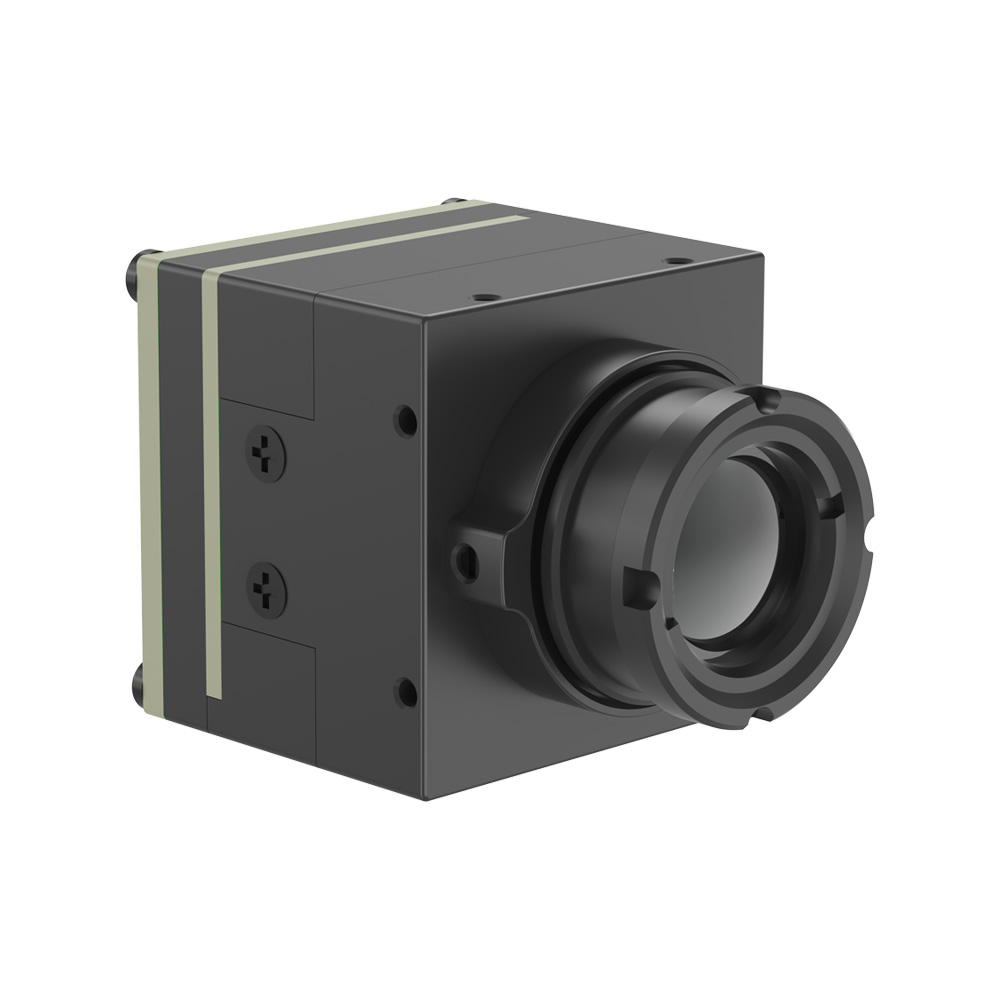

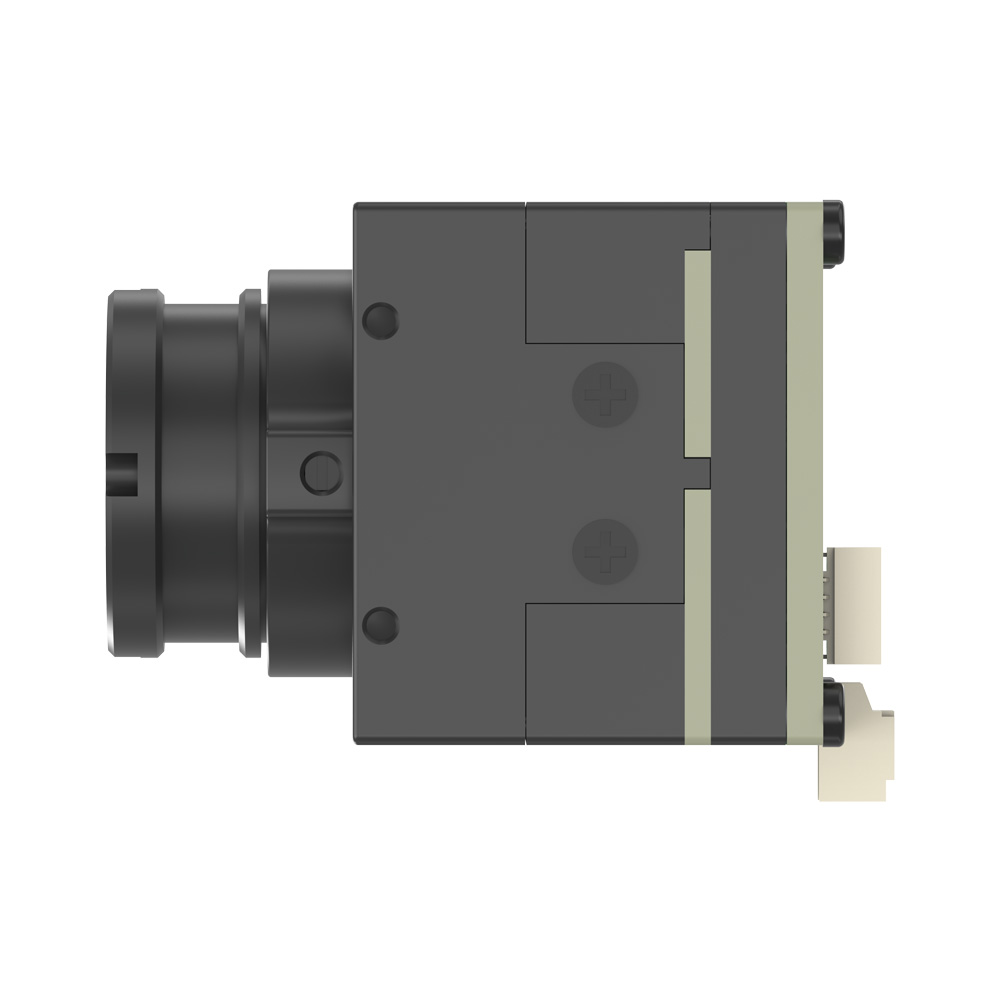

Product Introduction: M04 Uncooled Infrared Thermal Imaging Core
The M04 is a high-performance uncooled infrared thermal imaging core designed for a wide range of professional and industrial applications. It features a 640×512 resolution with a 12μm pixel size, providing clear and detailed thermal imagery across its 8-14μm working band.
Key features include an impressive NETD of ≤40mK@F/1.0, ensuring excellent sensitivity to temperature differences even in challenging conditions. With a 50Hz frame rate and a 45.76°×37.31° field of view, it delivers smooth, real-time thermal video. The core supports manual focusing and offers nine different false color palettes, including white heat, black heat, and rainbow, to enhance image interpretation.
For integration, the HT-M04-0609W provides a network port for digital video output and is compatible with a 6V to 15V power supply, consuming only 1.56W. Its compact dimensions (25×25×32.62mm) and lightweight design (31g±1g) make it an ideal solution for integration into various systems, including handheld devices, drones, and security equipment. The operating temperature range of -20°C to +50°C and storage temperature range of -30°C to +70°C ensure reliable performance in diverse environments.
| Parameter | Value |
|---|---|
| Model | M04 |
| Resolution | 640×512 |
| Pixel size | 12μm |
| Working band | 8 ~ 14μm |
| NETD | ≤40mK,F/#1.0 |
| Frame rate | 50Hz |
| Focus mode | Manual focusing |
| Focal length | 91mm |
| Field of view | 45.76°× 37.31° |
| False color | White heat, black heat, rainbow, red heat, etc., a total of 9 kinds of false colors |
| F coefficient | 1.0 |
| Digital video output | Network port |
| Analog video output | / |
| Analog Output Resolution | / |
| Shutter response time | 1 to 30 minutes (default 2 minutes) |
| Hotspot tracking | / |
| Grid lines | / |
| Language | Chinese, English (Default: English) |
| Brightness/Contrast | 0-100 (Default: 50) |
| Electronic Zoom | 1X, 2X, 4X, 8X |
| Image mirroring | / |
| Operating voltage | 12V (6V~15V) |
| Power consumption | 1.56W(12V/130mA) |
| Operating temperature | -20°C~+50°C |
| Storage temperature | -30°C~+70°C |
| Size | 25×25×32.62mm |
| Weight | 31g±1g |
